    TAMURA ELSOLD® solder pastes feature outstanding wetting properties across a wide range of temperatures. Because of this, our solder pastes offer first-rate slump characteristics and excellent adhesive qualities. The use of chemically modified materials makes the pastes extremely reproducible, which delivers tangible user benefits in the form of consistent print results from board to board.

    Further benefits include minimal shrinkage, high printing speeds and high activity on all surfaces. TAMURA ELSOLD® solder pastes are ideal for closed chamber doctor blade systems and for fine-pitch printing.

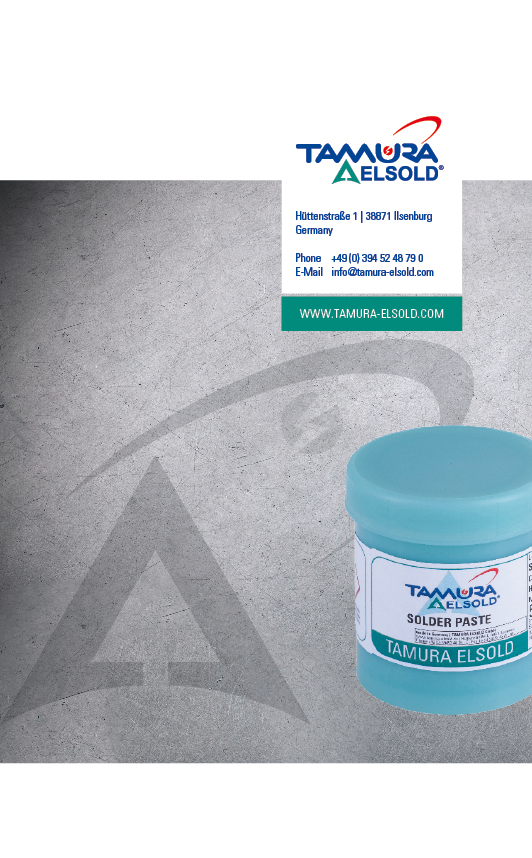

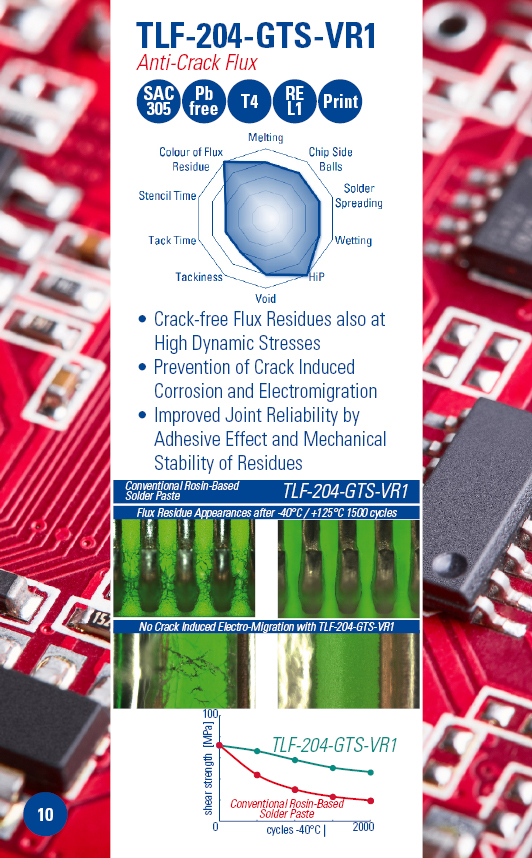

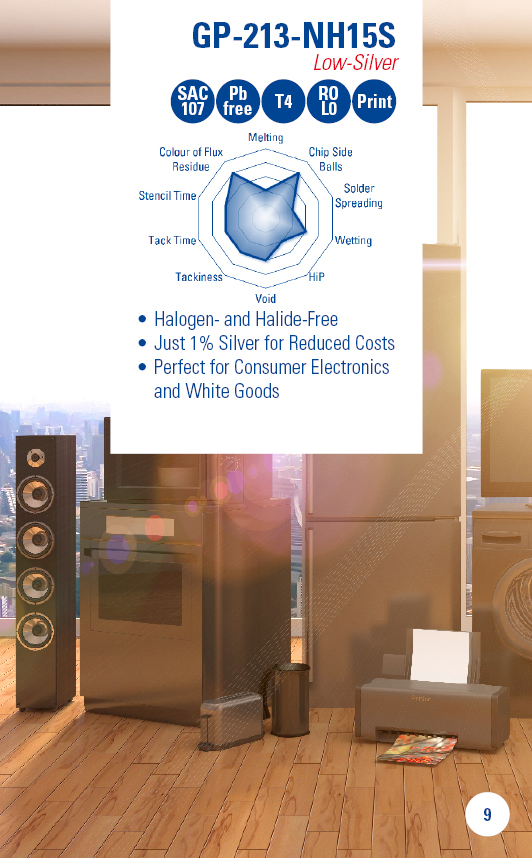

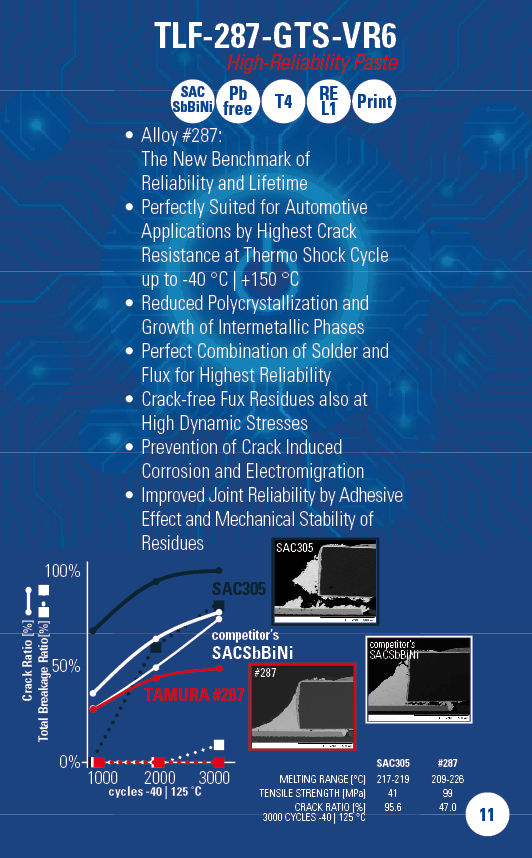

    SOLDER PASTE CATALOGUE 2020

    Datasheets

    TAMURA ELSOLD Solder Paste AP-10 for lead-free applications [PDF]

    TAMURA ELSOLD Solder Paste AP-10 for leaded applications [PDF]

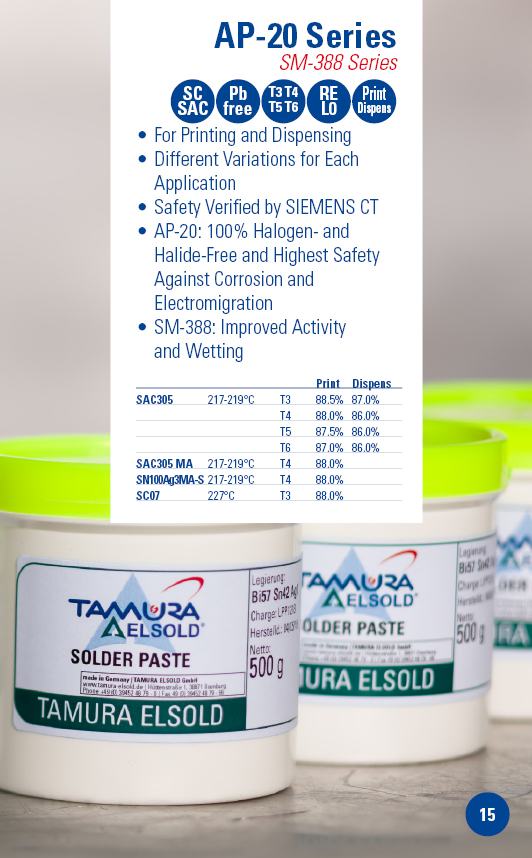

    TAMURA ELSOLD Solder Paste AP-20 for lead-free applications [PDF]

    TAMURA ELSOLD Solder Paste AP-40 for lead-free applications [PDF]

    TAMURA ELSOLD Solder Paste AP-40 for leaded applications [PDF]

    TAMURA ELSOLD Solder Paste SM-388 for lead-free applications [PDF]

    TAMURA ELSOLD Solder Paste SM-388 for leaded applications [PDF]

    TAMURA ELSOLD Special Solder Paste SM-388 SACBI-189 [PDF]

    TAMURA ELSOLD Lead-free DIP Solder Paste SAC305 [PDF]

    TAMURA ELSOLD Lead-bearing DIP Solder Paste Sn63Pb37 [PDF]

    TAMURA Lead-free Solder Paste TLF-204-111M


    Flux classification as per DIN EN 61190-1-1

    Available metal powder types:  3 / 4 / and 5 / 6 on request

    Various metal levels available depending on the required viscosity


    Delivered as

    Syringes: 10 cc / 30 cc

    Cans: 250 g / 500 g

    Cartridges: 600 g / 1,2 kg

    Pro-flow cassettes: 750 g

    TAMURA ELSOLD solder pastes

    Since the beginning of 2020, TAMURA ELSOLD GmbH has been producing TAMURA solder pastes of the highest quality in a newly built solder paste production facility in Ilsenburg under clean room conditions using state-of-the-art equipment. After only 10 months between the ground-breaking ceremony in March 2019 and full commissioning, this represents a major step in the German-Japanese cooperation and TAMURA ELSOLD GmbH‘s membership in the TAMURA family, which has been in existence since 2017. European customers will thus benefit even more from the combination of international know-how and now significantly shorter delivery distances. The solder pastes for printing processes formulated in the Japanese development centre offer a solution for almost every application. The focus is on SAC305 T4 pastes (TLF-204), with other grain sizes available on customer request, led by TLF-204-171AK with optimum printability even at high speeds and excellent soldering results.In addition to these and other solder pastes for printing processes now produced in Germany, the well-known contacts of TAMURA ELSOLD GmbH naturally also offer comprehensive advice and support for the other TAMURA solder pastes for special processes and with special properties, whether for high-performance jet dispensing processes, laser soldering or for applications with high thermal and dynamic loads.
